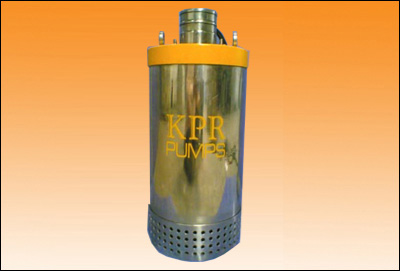

Electric Submersible Dewatering Pumps ( Ak-8350H-2P ) Manufacturer

Model No. : AK-8350H-2P

Motor Rating:
8HP (6KW)/3Ø/50Hz/400Volt, 2850 RPM DOL Start squirrel cage continuous rated induction
motor, insulation Class H (1800C).

Full Load Current:
13 Amps @ 400 Volt/3Ø/50Hz Ac Supply

Discharge Connection:
3” Stainless Steel, Hose type.

Start/Stop: Max.15 per hour.

Power Cable:
15 meter, Water proof PVC insulated, flexible power cable of size 4 Core X 4 sq.mm.
*Use rated current when sizing control equipment.

Mechanical Seal :
Double mechanical seals (Inner & Outer) in Tandem arrangement. Seal faces are Tungsten Carbide Vs Tungsten Carbide and are wholly enclosed in oil chamber.

Materials:
Casted Parts : Aluminum Alloy LM4
Outer Casing : Stainless Steel 304
Motor Casing : Aluminum Alloy LM4
Motor Shaft : Stainless Steel 431
Impeller : Stainless Steel 410,
Hardened (HRC-55)
Fasteners : Stainless Steel 304
Diffuser : Nitrile Rubber Coated
Strainer : Stainless Steel with circular holes of 10mm X 10mm.

Limitations:
Max. Submergence depth-15 Mtr.
Max. Liquid Temperature-400C.

These pumps must be used with external motor protection in accordance with technical data.

Weight: 67 KG (Approx) without Cable
