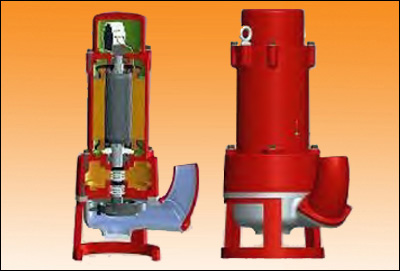

Non - Clog Pumps ( SK-8350-NC ) Manufacturer

Model No. : SK-8350-NC

Motor Rating:
8HP (6KW)/3Ø/50Hz/415Volt, 2800 RPM DOL Start squirrel cage continuous rated induction
motor, insulation Class H (1550C).

Full Load Current:
13 Amps @ 415 Volt/3Ø/50Hz Ac Supply

Discharge Connection:
3”Aluminium, Hose type.

Start/Stop: Max.15 per hour.

Power Cable:
15 meter, Water proof EPR insulated, flexible power cable of size 4 Core X 2.5 sq.mm.
*Use rated current when sizing control equipment.

Mechanical Seal :
Double seals of Inner lip seal & Outer Tungsten Carbide Vs Tungsten Carbide and are wholly enclosed in oil chamber.

Materials:
Casted Parts : Aluminum Alloy
Motor Casing : Aluminum Alloy
Pump Volute : Stainless Steel
Motor Shaft : Stainless Steel
Impeller : Stainless Steel, Hardened (HRC-55)
Outlet : Aluminum Alloy
Wear Plate : Stainless Steel
Fasteners : Stainless Steel
Oil Chamber : Aluminum Alloy

Limitations:

Max. Submergence depth-10 Mtr.
Max. Liquid Temperature-400C.

*These pumps must be used with external motor protection in accordance with technical data.

Weight: 60 KG (Approx) without Cable
