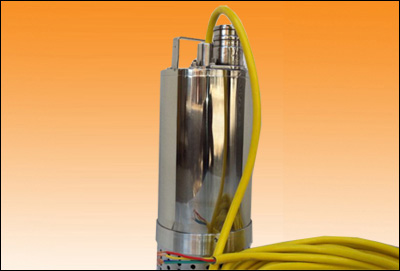

Electric Submersible Dewatering Pumps ( Ak-6350-2P ) Manufacturer

Model No. : AK-6350M\L-2P

Motor Rating:
6HP (4.5KW)/3Ø/50Hz/415Volt, 2850 RPM DOL Start squirrel cage continuous rated induction
motor, insulation Class H (1800C).

Full Load Current:
9.8 Amps @ 415 Volt/3Ø/50Hz Ac Supply

Discharge Connection:
3”Stainless Steel, Hose type.

Start/Stop: Max.15 per hour.

Power Cable:
15 meter, Water proof PVC/EPR insulated, flexible power cable of size 4 Core X 2.5 sq.mm.
*Use rated current when sizing control equipment.

Mechanical Seal :
Double mechanical seals (Inner & Outer) in Tandem arrangement. Seal faces are Tungsten
Carbide Vs Tungsten Carbide and are wholly enclosed in oil chamber.

Materials:
Casted Parts : Aluminum Alloy LM4
Outer Casing : Stainless Steel-304
Motor Casing : Aluminum Alloy LM4
Motor Shaft : Stainless Steel-431
Impeller : Stainless Steel 410,
Hardened (HRC-55)
Fasteners : Stainless Steel-304
Oil Chamber : Aluminum Alloy LM4
Diffuser : Nitrile Rubber Coated
Strainer : Stainless Steel with circular holes of 10mm X 10mm.

Limitations:
Max. Submergence depth-10 Mtr.
Max. Liquid Temperature-400C.

*These pumps must be used with external motor protection in accordance with technical data.

Weight: 45 KG (Approx) without Cable
