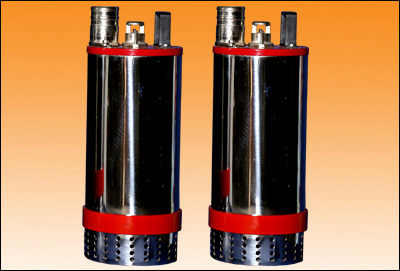

Electric Submersible Dewatering Pumps ( Ak-1.5360-2p) Manufacturer

Model No. : AK-1.5360-2P

Motor Rating:
1.5HP (1.1KW)/1Ø/60Hz/110Volt, 3600 RPM DOL Start squirrel cage continuous rated induction
motor, insulation Class H (1800C).

Full Load Current:
11.2 Amps @ 110 Volt/1Ø/60Hz Ac Supply

Discharge Connection:
2” SS304, Hose type.

Start/Stop: Max.15 per hour.

Power Cable:
15 meter, Water proof EPR insulated, flexible power cable of size 4 Core X 1.5 sq.mm.
*Use rated current when sizing control equipment.

Mechanical Seal :
Double seals of Inner lip seal & Outer Tungsten Carbide Vs Tungsten Carbide and are wholly
enclosed in oil chamber.

Materials:
Casted Parts : Aluminum Alloy LM4
Outer Casing : Stainless Steel SS304
Motor Casing : Aluminum Alloy LM4
Motor Shaft : Stainless Steel SS431
Impeller : Stainless Steel SS410,
Hardened (HRC-55)
Fasteners : Stainless Steel
Oil Chamber : Aluminum Alloy
Diffuser : Nitrile Rubber Coated
Strainer : Stainless Steel with circular holes of 6mm X 6mm.

Limitations:
Max. Submergence depth-10 Mtr.
Max. Liquid Temperature-400C.

*These pumps must be used with external motor protection in accordance with technical data.

Weight: 17 KG (Approx) without Cable
