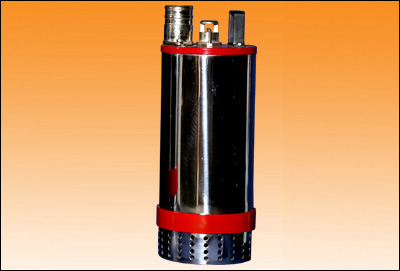

Electric Submersible Dewatering Pumps ( Ak-2350-2p ) Manufacturer

Model No. : AK-2350-2P

Motor Rating:
2HP (1.5KW)/3Ø/50Hz/415Volt, 2800 RPM DOL Start squirrel cage continuous rated induction
motor, insulation Class H (1800C).

Full Load Current:
5 Amps @ 415 Volt/3Ø/50Hz Ac Supply

Discharge Connection:
2”Stainless Steel, Hose type.

Start/Stop: Max.15 per hour.

Power Cable:
15 meter, Water proof EPR insulated, flexible power cable of size 4 Core X 1.5 sq.mm.
*Use rated current when sizing control equipment.

Mechanical Seal :
Double seals of Inner Car/Cer & Outer Tungsten Carbide Vs Tungsten Carbide and are wholly
enclosed in oil chamber.

Materials:
Casted Parts : Aluminum Alloy LM4
Outer Casing : Stainless Steel SS304
Motor Casing : Aluminum Alloy LM4
Motor Shaft : Stainless Steel SS431
Impeller : Stainless Steel 410, Hardened (HRC-55)
Fasteners : Stainless Steel SS304
Oil Chamber : Aluminum Alloy LM4
Diffuser : Nitrile Rubber Coated
Strainer : Stainless Steel SS304 with circular holes of 6mm X 6mm.

Limitations:
Max. Submergence depth-10 Mtr.
Max. Liquid Temperature-400C.

*These pumps must be used with external motor protection in accordance with technical data.

Weight: 19 KG (Approx) without Cable
